Series
Product Name
Power
Specifications
Temperature coefficient
Precision
Resistance segment
Specifications
Details
HBWR
High Power Wire-wound Aluminum Case Resistors-HBWR Series
600W
HBWR
±350PPM/℃
±5%、±10%
20Ω≤R≤12KΩ
File size:457.79 KB
Details
HBWR
High Power Wire-wound Aluminum Case Resistors-HBWR Series
600W
HBWR
±400PPM/℃
±5%、±10%
0.5Ω≤R＜20Ω
File size:457.79 KB
Details
HBWR
High Power Wire-wound Aluminum Case Resistors-HBWR Series
500W
HBWR
±350PPM/℃
±5%、±10%
20Ω≤R≤12KΩ
File size:457.79 KB
Details
HBWR
High Power Wire-wound Aluminum Case Resistors-HBWR Series
500W
HBWR
±400PPM/℃
±5%、±10%
0.5Ω≤R＜20Ω
File size:457.79 KB
Details
HBWR
High Power Wire-wound Aluminum Case Resistors-HBWR Series
400W
HBWR
±350PPM/℃
±5%、±10%
20Ω≤R≤10KΩ
File size:457.79 KB
Details
HBWR
High Power Wire-wound Aluminum Case Resistors-HBWR Series
400W
HBWR
±400PPM/℃
±5%、±10%
0.5Ω≤R＜20Ω
File size:457.79 KB
Details
HBWR
High Power Wire-wound Aluminum Case Resistors-HBWR Series
300W
HBWR
±350PPM/℃
±5%、±10%
20Ω≤R≤8KΩ
File size:457.79 KB
Details
HBWR
High Power Wire-wound Aluminum Case Resistors-HBWR Series
300W
HBWR
±400PPM/℃
±5%、±10%
1Ω≤R＜20Ω
File size:457.79 KB
Details
HBWR
High Power Wire-wound Aluminum Case Resistors-HBWR Series
200W
HBWR
±350PPM/℃
±5%、±10%
20Ω≤R≤7KΩ
File size:457.79 KB
Details
HBWR
High Power Wire-wound Aluminum Case Resistors-HBWR Series
200W
HBWR
±400PPM/℃
±5%、±10%
1Ω≤R＜20Ω
File size:457.79 KB
Details
HEWR
High Power Wire-wound Aluminum Case Resistors-HEWR Series
4000W
HEWR
±350PPM/℃
±5%、±10%
20Ω≤R≤15KΩ
File size:457.79 KB
Details
HEWR
High Power Wire-wound Aluminum Case Resistors-HEWR Series
4000W
HEWR
±400PPM/℃
±5%、±10%
1Ω≤R＜20Ω
File size:457.79 KB
Details
HEWR
High Power Wire-wound Aluminum Case Resistors-HEWR Series
3000W
HEWR
±350PPM/℃
±5%、±10%
20Ω≤R≤15KΩ
File size:457.79 KB
Details
HEWR
High Power Wire-wound Aluminum Case Resistors-HEWR Series
3000W
HEWR
±400PPM/℃
±5%、±10%
1Ω≤R＜20Ω
File size:457.79 KB
Details
HEWR
High Power Wire-wound Aluminum Case Resistors-HEWR Series
2000W
HEWR
±350PPM/℃
±5%、±10%
20Ω≤R≤15KΩ
File size:457.79 KB
Details
HEWR
High Power Wire-wound Aluminum Case Resistors-HEWR Series
2000W
HEWR
±400PPM/℃
±5%、±10%
1Ω≤R＜20Ω
File size:457.79 KB
Details
HEWR
High Power Wire-wound Aluminum Case Resistors-HEWR Series
1500W
HEWR
±350PPM/℃
±5%、±10%
20Ω≤R≤15KΩ
File size:457.79 KB
Details
HEWR
High Power Wire-wound Aluminum Case Resistors-HEWR Series
1500W
HEWR
±400PPM/℃
±5%、±10%
1Ω≤R＜20Ω
File size:457.79 KB
Details
HEWR
High Power Wire-wound Aluminum Case Resistors-HEWR Series
1000W
HEWR
±350PPM/℃
±5%、±10%
20Ω≤R≤15KΩ
File size:457.79 KB
Details
HEWR
High Power Wire-wound Aluminum Case Resistors-HEWR Series
1000W
HEWR
±400PPM/℃
±5%、±10%
1Ω≤R＜20Ω
File size:457.79 KB
Details
HEWR
High Power Wire-wound Aluminum Case Resistors-HEWR Series
600W
HEWR
±350PPM/℃
±5%、±10%
20Ω≤R≤12KΩ
File size:457.79 KB
Details
HEWR
High Power Wire-wound Aluminum Case Resistors-HEWR Series
600W
HEWR
±400PPM/℃
±5%、±10%
0.5Ω≤R＜20Ω
File size:457.79 KB
Details
HEWR
High Power Wire-wound Aluminum Case Resistors-HEWR Series
500W
HEWR
±350PPM/℃
±5%、±10%
20Ω≤R≤12KΩ
File size:457.79 KB
Details
HEWR
High Power Wire-wound Aluminum Case Resistors-HEWR Series
500W
HEWR
±400PPM/℃
±5%、±10%
0.5Ω≤R＜20Ω
File size:457.79 KB
Details
HEWR
High Power Wire-wound Aluminum Case Resistors-HEWR Series
400W
HEWR
±350PPM/℃
±5%、±10%
20Ω≤R≤10KΩ
File size:457.79 KB
Details
HEWR
High Power Wire-wound Aluminum Case Resistors-HEWR Series
400W
HEWR
±400PPM/℃
±5%、±10%
0.5Ω≤R＜20Ω
File size:457.79 KB
Details
HEWR
High Power Wire-wound Aluminum Case Resistors-HEWR Series
300W
HEWR
±350PPM/℃
±5%、±10%
20Ω≤R≤8KΩ
File size:457.79 KB
Details
HEWR
High Power Wire-wound Aluminum Case Resistors-HEWR Series
300W
HEWR
±400PPM/℃
±5%、±10%
1Ω≤R＜20Ω
File size:457.79 KB
Details
HEWR
High Power Wire-wound Aluminum Case Resistors-HEWR Series
200W
HEWR
±350PPM/℃
±5%、±10%
20Ω≤R≤7KΩ
File size:457.79 KB
Details
HEWR
High Power Wire-wound Aluminum Case Resistors-HEWR Series
200W
HEWR
±400PPM/℃
±5%、±10%
1Ω≤R＜20Ω
File size:457.79 KB
Details
HEWR
High Power Wire-wound Aluminum Case Resistors-HEWR Series
150W
HEWR
±350PPM/℃
±5%、±10%
20Ω≤R≤6KΩ
File size:457.79 KB
Details
HEWR
High Power Wire-wound Aluminum Case Resistors-HEWR Series
150W
HEWR
±400PPM/℃
±5%、±10%
1Ω≤R＜20Ω
File size:457.79 KB
Details
HEWR
High Power Wire-wound Aluminum Case Resistors-HEWR Series
120W
HEWR
±350PPM/℃
±5%、±10%
20Ω≤R≤5KΩ
File size:457.79 KB
Details
HEWR
High Power Wire-wound Aluminum Case Resistors-HEWR Series
120W
HEWR
±400PPM/℃
±5%、±10%
1Ω≤R＜20Ω
File size:457.79 KB
Details
HEWR
High Power Wire-wound Aluminum Case Resistors-HEWR Series
100WS
HEWR
±350PPM/℃
±5%、±10%
20Ω≤R≤4KΩ
File size:457.79 KB
Details
HEWR
High Power Wire-wound Aluminum Case Resistors-HEWR Series
100WS
HEWR
±400PPM/℃
±5%、±10%
1Ω≤R＜20Ω
File size:457.79 KB
Details
HEWR
High Power Wire-wound Aluminum Case Resistors-HEWR Series
100W
HEWR
±350PPM/℃
±5%、±10%
20Ω≤R≤4KΩ
File size:457.79 KB
Details
HEWR
High Power Wire-wound Aluminum Case Resistors-HEWR Series
100W
HEWR
±400PPM/℃
±5%、±10%
1Ω≤R＜20Ω
File size:457.79 KB
Details
HEWR
High Power Wire-wound Aluminum Case Resistors-HEWR Series
80W
HEWR
±350PPM/℃
±5%、±10%
20Ω≤R≤3KΩ
File size:457.79 KB
Details
HEWR
High Power Wire-wound Aluminum Case Resistors-HEWR Series
80W
HEWR
±400PPM/℃
±5%、±10%
1Ω≤R＜20Ω
File size:457.79 KB
Details
HEWR
High Power Wire-wound Aluminum Case Resistors-HEWR Series
60W
HEWR
±350PPM/℃
±5%、±10%
20Ω≤R≤2.5KΩ
File size:457.79 KB
Details
HEWR
High Power Wire-wound Aluminum Case Resistors-HEWR Series
60W
HEWR
±400PPM/℃
±5%、±10%
2Ω≤R＜20Ω
File size:457.79 KB
Details

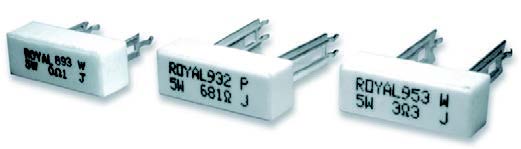

PHF1、PHF2、PHF3
Lead Type Cement Fixed Resistors-PHF Series
17W
PHF1、PHF2、PHF3
±350PPM/℃
±5%、±10%
1Ω~10KΩ
File size:516.04 KB
Details
PHF1、PHF2、PHF3
Lead Type Cement Fixed Resistors-PHF Series
11W
PHF1、PHF2、PHF3
±350PPM/℃
±5%、±10%
1Ω~6.2KΩ
File size:516.04 KB
Details
PHF1、PHF2
Lead Type Cement Fixed Resistors-PHF Series
4W
PHF1、PHF2
±350PPM/℃
±5%、±10%
1Ω~1KΩ
File size:516.04 KB
Details

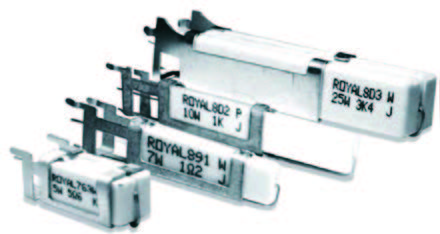

PRWI
Lead Type Cement Fixed Resistors-PRWI Series
17W
PRWI
±350PPM/℃
±5%、±10%
20Ω≤R≤39KΩ
File size:548.03 KB
Details
PRWI
Lead Type Cement Fixed Resistors-PRWI Series
17W
PRWI
±350PPM/℃
±5%、±10%
1Ω≤R＜20Ω
File size:548.03 KB
Details
PRWI
Lead Type Cement Fixed Resistors-PRWI Series
11W
PRWI
±350PPM/℃
±5%、±10%
20Ω≤R≤22KΩ
File size:548.03 KB
Details
PRWI
Lead Type Cement Fixed Resistors-PRWI Series
11W
PRWI
±350PPM/℃
±5%、±10%
1Ω≤R＜20Ω
File size:548.03 KB
Details
PRWI
Lead Type Cement Fixed Resistors-PRWI Series
7W
PRWI
±350PPM/℃
±5%、±10%
20Ω≤R≤22KΩ
File size:548.03 KB
Details
PRWI
Lead Type Cement Fixed Resistors-PRWI Series
7W
PRWI
±350PPM/℃
±5%、±10%
1Ω≤R＜20Ω
File size:548.03 KB
Details
PRWI
Lead Type Cement Fixed Resistors-PRWI Series
4W
PRWI
±350PPM/℃
±5%、±10%
20Ω≤R≤6.8KΩ
File size:548.03 KB
Details
PRWI
Lead Type Cement Fixed Resistors-PRWI Series
4W
PRWI
±400PPM/℃
±5%、±10%
1Ω≤R＜20Ω
File size:548.03 KB
Details
MGRD
Metal Glaze Film Voltage Divider Resistors
50W
MGRD
±200PPM/℃
±1%、±5%
50MΩ~80MΩ
File size:416.14 KB
Details

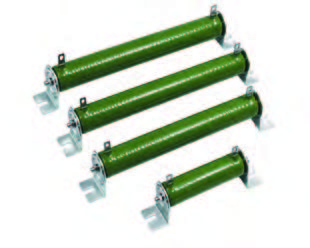

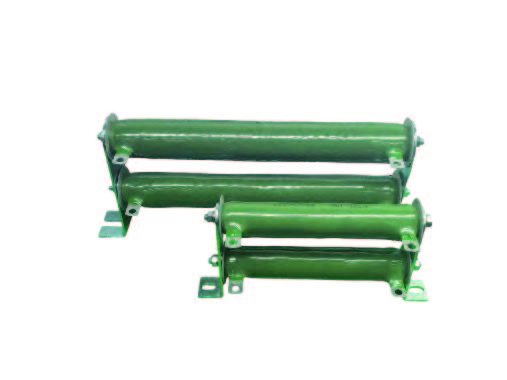

QRZG Series
Power Alloy Wire-wound Resistors-QL、QR、QRZG Series
2,500W
QRZG
＜20Ω:±400PPM/℃
≧20Ω:±300PPM/℃
±5%、±10%
1Ω~120Ω
File size:649.69 KB
Details
QRZG Series
Power Alloy Wire-wound Resistors-QL、QR、QRZG Series
2,000W
QRZG
＜20Ω:±400PPM/℃
≧20Ω:±300PPM/℃
±5%、±10%
1Ω~120Ω
File size:649.69 KB
Details
QRZG Series
Power Alloy Wire-wound Resistors-QL、QR、QRZG Series
1,500W
QRZG
＜20Ω:±400PPM/℃
≧20Ω:±300PPM/℃
±5%、±10%
1Ω~120Ω
File size:649.69 KB
Details
QRZG Series
Power Alloy Wire-wound Resistors-QL、QR、QRZG Series
1,200W
QRZG
＜20Ω:±400PPM/℃
≧20Ω:±300PPM/℃
±5%、±10%
1Ω~100Ω
File size:649.69 KB
Details
QRZG Series
Power Alloy Wire-wound Resistors-QL、QR、QRZG Series
1,000W
QRZG
＜20Ω:±400PPM/℃
≧20Ω:±300PPM/℃
±5%、±10%
1Ω~100Ω
File size:649.69 KB
Details
QRZG Series
Power Alloy Wire-wound Resistors-QL、QR、QRZG Series
750W
QRZG
＜20Ω:±400PPM/℃
≧20Ω:±300PPM/℃
±5%、±10%
1Ω~75Ω
File size:649.69 KB
Details
QRZG Series
Power Alloy Wire-wound Resistors-QL、QR、QRZG Series
600W
QRZG
＜20Ω:±400PPM/℃
≧20Ω:±300PPM/℃
±5%、±10%
1Ω~20Ω
File size:649.69 KB
Details
QRZG Series
Power Alloy Wire-wound Resistors-QL、QR、QRZG Series
500W
QRZG
＜20Ω:±400PPM/℃
≧20Ω:±300PPM/℃
±5%、±10%
1Ω~20Ω
File size:649.69 KB
Details
QRZG Series
Power Alloy Wire-wound Resistors-QL、QR、QRZG Series
400W
QRZG
＜20Ω:±400PPM/℃
≧20Ω:±300PPM/℃
±5%、±10%
0.8Ω~15Ω
File size:649.69 KB
Details
QRZG Series
Power Alloy Wire-wound Resistors-QL、QR、QRZG Series
300W
QRZG
＜20Ω:±400PPM/℃
≧20Ω:±300PPM/℃
±5%、±10%
0.5Ω~9.1Ω
File size:649.69 KB
Details
QRZG Series
Power Alloy Wire-wound Resistors-QL、QR、QRZG Series
200W
QRZG
＜20Ω:±400PPM/℃
≧20Ω:±300PPM/℃
±5%、±10%
0.4Ω~9.1Ω
File size:649.69 KB
Details
QR Series
Power Alloy Wire-wound Resistors-QL、QR、QRZG Series
2,500W
QR
＜20Ω:±400PPM/℃
≧20Ω:±300PPM/℃
±5%、±10%
1Ω~120Ω
File size:649.69 KB
Details
QR Series
Power Alloy Wire-wound Resistors-QL、QR、QRZG Series
2,000W
QR
＜20Ω:±400PPM/℃
≧20Ω:±300PPM/℃
±5%、±10%
1Ω~120Ω
File size:649.69 KB
Details
QR Series
Power Alloy Wire-wound Resistors-QL、QR、QRZG Series
1,500W
QR
＜20Ω:±400PPM/℃
≧20Ω:±300PPM/℃
±5%、±10%
1Ω~120Ω
File size:649.69 KB
Details
QR Series
Power Alloy Wire-wound Resistors-QL、QR、QRZG Series
1,200W
QR
＜20Ω:±400PPM/℃
≧20Ω:±300PPM/℃
±5%、±10%
1Ω~100Ω
File size:649.69 KB
Details
QR Series
Power Alloy Wire-wound Resistors-QL、QR、QRZG Series
1,000W
QR
＜20Ω:±400PPM/℃
≧20Ω:±300PPM/℃
±5%、±10%
1Ω~100Ω
File size:649.69 KB
Details
QR Series
Power Alloy Wire-wound Resistors-QL、QR、QRZG Series
750W
QR
＜20Ω:±400PPM/℃
≧20Ω:±300PPM/℃
±5%、±10%
1Ω~75Ω
File size:649.69 KB
Details
QR Series
Power Alloy Wire-wound Resistors-QL、QR、QRZG Series
600W
QR
＜20Ω:±400PPM/℃
≧20Ω:±300PPM/℃
±5%、±10%
1Ω~20Ω
File size:649.69 KB
Details
QR Series
Power Alloy Wire-wound Resistors-QL、QR、QRZG Series
500W
QR
＜20Ω:±400PPM/℃
≧20Ω:±300PPM/℃
±5%、±10%
1Ω~20Ω
File size:649.69 KB
Details
QR Series
Power Alloy Wire-wound Resistors-QL、QR、QRZG Series
400W
QR
＜20Ω:±400PPM/℃
≧20Ω:±300PPM/℃
±5%、±10%
0.8Ω~15Ω
File size:649.69 KB
Details
QR Series
Power Alloy Wire-wound Resistors-QL、QR、QRZG Series
300W
QR
＜20Ω:±400PPM/℃
≧20Ω:±300PPM/℃
±5%、±10%
0.5Ω~9.1Ω
File size:649.69 KB
Details
QR Series
Power Alloy Wire-wound Resistors-QL、QR、QRZG Series
200W
QR
＜20Ω:±400PPM/℃
≧20Ω:±300PPM/℃
±5%、±10%
0.4Ω~9.1Ω
File size:649.69 KB
Details
QL Series
Power Alloy Wire-wound Resistors-QL、QR、QRZG Series
2,500W
QL
＜20Ω:±400PPM/℃
≧20Ω:±300PPM/℃
±5%、±10%
121Ω~360KΩ
File size:649.69 KB
Details
QL Series
Power Alloy Wire-wound Resistors-QL、QR、QRZG Series
2,000W
QL
＜20Ω:±400PPM/℃
≧20Ω:±300PPM/℃
±5%、±10%
121Ω~300KΩ
File size:649.69 KB
Details
QL Series
Power Alloy Wire-wound Resistors-QL、QR、QRZG Series
1,500W
QL
＜20Ω:±400PPM/℃
≧20Ω:±300PPM/℃
±5%、±10%
121Ω~250KΩ
File size:649.69 KB
Details
QL Series
Power Alloy Wire-wound Resistors-QL、QR、QRZG Series
1,200W
QL
＜20Ω:±400PPM/℃
≧20Ω:±300PPM/℃
±5%、±10%
101Ω~250KΩ
File size:649.69 KB
Details
QL Series
Power Alloy Wire-wound Resistors-QL、QR、QRZG Series
1,000W
QL
＜20Ω:±400PPM/℃
≧20Ω:±300PPM/℃
±5%、±10%
101Ω~200KΩ
File size:649.69 KB
Details
QL Series
Power Alloy Wire-wound Resistors-QL、QR、QRZG Series
750W
QL
＜20Ω:±400PPM/℃
≧20Ω:±300PPM/℃
±5%、±10%
76Ω~180KΩ
File size:649.69 KB
Details
QL Series
Power Alloy Wire-wound Resistors-QL、QR、QRZG Series
600W
QL
＜20Ω:±400PPM/℃
≧20Ω:±300PPM/℃
±5%、±10%
21Ω~150KΩ
File size:649.69 KB
Details
QL Series
Power Alloy Wire-wound Resistors-QL、QR、QRZG Series
500W
QL
＜20Ω:±400PPM/℃
≧20Ω:±300PPM/℃
±5%、±10%
21Ω~150KΩ
File size:649.69 KB
Details
QL Series
Power Alloy Wire-wound Resistors-QL、QR、QRZG Series
400W
QL
＜20Ω:±400PPM/℃
≧20Ω:±300PPM/℃
±5%、±10%
16Ω~150KΩ
File size:649.69 KB
Details
QL Series
Power Alloy Wire-wound Resistors-QL、QR、QRZG Series
300W
QL
＜20Ω:±400PPM/℃
≧20Ω:±300PPM/℃
±5%、±10%
10Ω~150KΩ
File size:649.69 KB
Details
QL Series
Power Alloy Wire-wound Resistors-QL、QR、QRZG Series
200W
QL
＜20Ω:±400PPM/℃
≧20Ω:±300PPM/℃
±5%、±10%
10Ω~100KΩ
File size:649.69 KB
Details
QL Series
Power Alloy Wire-wound Resistors-QL、QR、QRZG Series
150W
QL
＜20Ω:±400PPM/℃
≧20Ω:±300PPM/℃
±5%、±10%
1Ω~70KΩ
File size:649.69 KB
Details
QL Series
Power Alloy Wire-wound Resistors-QL、QR、QRZG Series
120W
QL
＜20Ω:±400PPM/℃
≧20Ω:±300PPM/℃
±5%、±10%
1Ω~60KΩ
File size:649.69 KB
Details
QL Series
Power Alloy Wire-wound Resistors-QL、QR、QRZG Series
100W
QL
＜20Ω:±400PPM/℃
≧20Ω:±300PPM/℃
±5%、±10%
1Ω~50KΩ
File size:649.69 KB
Details
QL Series
Power Alloy Wire-wound Resistors-QL、QR、QRZG Series
80W
QL
＜20Ω:±400PPM/℃
≧20Ω:±300PPM/℃
±5%、±10%
0.1Ω~40KΩ
File size:649.69 KB
Details
QL Series
Power Alloy Wire-wound Resistors-QL、QR、QRZG Series
60W
QL
＜20Ω:±400PPM/℃
≧20Ω:±300PPM/℃
±5%、±10%
0.1Ω~30KΩ
File size:649.69 KB
Details
QL Series
Power Alloy Wire-wound Resistors-QL、QR、QRZG Series
50W
QL
＜20Ω:±400PPM/℃
≧20Ω:±300PPM/℃
±5%、±10%
0.1Ω~25KΩ
File size:649.69 KB
Details

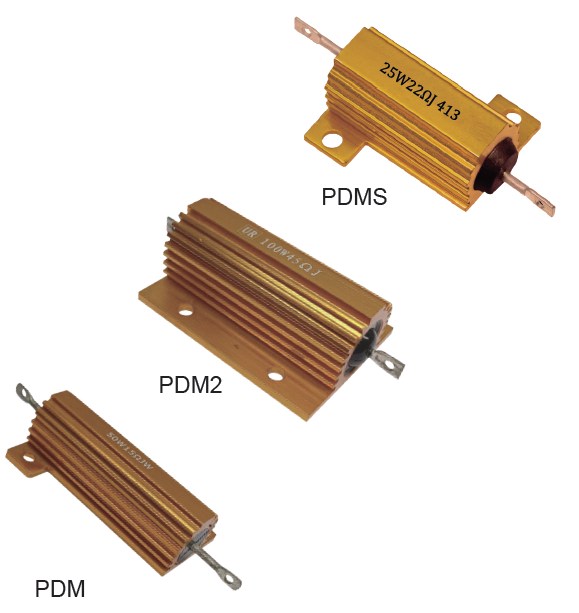

PDM-2
Power Dissipation Mount Fixed Resistors-PDM Series
100W
PDM-2
±350PPM/℃
±5%、±10%
20Ω＜R≤22KΩ
File size:434.83 KB
Details
PDM-2
Power Dissipation Mount Fixed Resistors-PDM Series
100W
PDM-2
±400PPM/℃
±5%、±10%
0.5Ω≤R≤20Ω
File size:434.83 KB
Details
PDMS
Power Dissipation Mount Fixed Resistors-PDM Series
50W
PDMS
±350PPM/℃
±5%、±10%
20Ω＜R≤35KΩ
File size:434.83 KB
Details
PDMS
Power Dissipation Mount Fixed Resistors-PDM Series
50W
PDMS
±400PPM/℃
±5%、±10%
5.1Ω≤R≤20Ω
File size:434.83 KB
Details
PDMS
Power Dissipation Mount Fixed Resistors-PDM Series
25W
PDMS
±350PPM/℃
±5%、±10%
20Ω＜R≤22KΩ
File size:434.83 KB
Details
PDMS
Power Dissipation Mount Fixed Resistors-PDM Series
25W
PDMS
±400PPM/℃
±5%、±10%
5.1Ω≤R≤20Ω
File size:434.83 KB
Details
PDMT
Power Dissipation Mount Fixed Resistors-PDM Series
50W
PDMT
±350PPM/℃
±5%、±10%
20Ω＜R≤35KΩ
File size:434.83 KB
Details
PDMT
Power Dissipation Mount Fixed Resistors-PDM Series
50W
PDMT
±400PPM/℃
±5%、±10%
5.1Ω≤R≤20Ω
File size:434.83 KB
Details
PDM0
Power Dissipation Mount Fixed Resistors-PDM Series
50W
PDM0
±350PPM/℃
±5%、±10%
20Ω＜R≤35KΩ
File size:434.83 KB
Details
PDM0
Power Dissipation Mount Fixed Resistors-PDM Series
50W
PDM0
±400PPM/℃
±5%、±10%
5.1Ω≤R≤20Ω
File size:434.83 KB
Details
PDM0
Power Dissipation Mount Fixed Resistors-PDM Series
35W
PDM0
±350PPM/℃
±5%、±10%
20Ω＜R≤15KΩ
File size:434.83 KB
Details
PDM0
Power Dissipation Mount Fixed Resistors-PDM Series
35W
PDM0
±400PPM/℃
±5%、±10%
5.1Ω≤R≤20Ω
File size:434.83 KB
Details
PDMT
Power Dissipation Mount Fixed Resistors-PDM Series
25W
PDMT
±350PPM/℃
±5%、±10%
20Ω＜R≤12KΩ
File size:434.83 KB
Details
PDMT
Power Dissipation Mount Fixed Resistors-PDM Series
25W
PDMT
±400PPM/℃
±5%、±10%
5.1Ω≤R≤20Ω
File size:434.83 KB
Details
PDM0
Power Dissipation Mount Fixed Resistors-PDM Series
25W
PDM0
±350PPM/℃
±5%、±10%
20Ω＜R≤12KΩ
File size:434.83 KB
Details
PDM0
Power Dissipation Mount Fixed Resistors-PDM Series
25W
PDM0
±400PPM/℃
±5%、±10%
5.1Ω≤R≤20Ω
File size:434.83 KB
Details
PDM0
Power Dissipation Mount Fixed Resistors-PDM Series
10W
PDM0
±350PPM/℃
±5%、±10%
20Ω＜R≤5KΩ
File size:434.83 KB
Details
PDM0
Power Dissipation Mount Fixed Resistors-PDM Series
10W
PDM0
±400PPM/℃
±5%、±10%
1Ω≤R≤20Ω
File size:434.83 KB
Details
PDM0
Power Dissipation Mount Fixed Resistors-PDM Series
5W
PDM0
±350PPM/℃
±5%、±10%
20Ω＜R≤1.8KΩ
File size:434.83 KB
Details
PDM0
Power Dissipation Mount Fixed Resistors-PDM Series
5W
PDM0
±400PPM/℃
±5%、±10%
0.5Ω≤R≤20Ω
File size:434.83 KB
Details

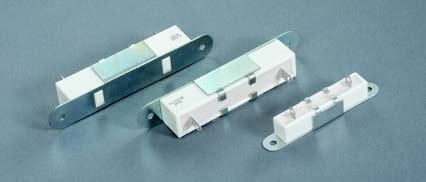

PRVA
Radial Terminal Type Cement Fixed Resistors-PRVA Series
20W
PRVA
±350PPM/℃
±5%、±10%
20Ω＜R≤200KΩ
File size:363.98 KB
Details
PRVA
Radial Terminal Type Cement Fixed Resistors-PRVA Series
20W
PRVA
±400PPM/℃
±5%、±10%
1Ω≤R≤20Ω
File size:363.98 KB
Details
PRVA
Radial Terminal Type Cement Fixed Resistors-PRVA Series
15W
PRVA
±350PPM/℃
±5%、±10%
20Ω＜R≤200KΩ
File size:363.98 KB
Details
PRVA
Radial Terminal Type Cement Fixed Resistors-PRVA Series
15W
PRVA
±400PPM/℃
±5%、±10%
1Ω≤R≤20Ω
File size:363.98 KB
Details
PRVA
Radial Terminal Type Cement Fixed Resistors-PRVA Series
10W
PRVA
±350PPM/℃
±5%、±10%
20Ω＜R≤200KΩ
File size:363.98 KB
Details
PRVA
Radial Terminal Type Cement Fixed Resistors-PRVA Series
10W
PRVA
±400PPM/℃
±5%、±10%
1Ω≤R≤20Ω
File size:363.98 KB
Details
PRVA
Radial Terminal Type Cement Fixed Resistors-PRVA Series
7W
PRVA
±350PPM/℃
±5%、±10%
20Ω＜R≤200KΩ
File size:363.98 KB
Details
PRVA
Radial Terminal Type Cement Fixed Resistors-PRVA Series
7W
PRVA
±400PPM/℃
±5%、±10%
0.1Ω≤R≤20Ω
File size:363.98 KB
Details
PRVA
Radial Terminal Type Cement Fixed Resistors-PRVA Series
5W
PRVA
±350PPM/℃
±5%、±10%
20Ω＜R≤200KΩ
File size:363.98 KB
Details
PRVA
Radial Terminal Type Cement Fixed Resistors-PRVA Series
5W
PRVA
±400PPM/℃
±5%、±10%
0.1Ω≤R≤20Ω
File size:363.98 KB
Details
PRVA
Radial Terminal Type Cement Fixed Resistors-PRVA Series
3W
PRVA
±350PPM/℃
±5%、±10%
20Ω＜R≤150KΩ
File size:363.98 KB
Details
PRVA
Radial Terminal Type Cement Fixed Resistors-PRVA Series
3W
PRVA
±400PPM/℃
±5%、±10%
0.1Ω≤R≤20Ω
File size:363.98 KB
Details
PRVB
Radial Terminal Type Cement Fixed Resistors-PRVB Series
20W
PRVB
±350PPM/℃
±5%、±10%
20Ω＜R≤200KΩ
File size:365.93 KB
Details
PRVB
Radial Terminal Type Cement Fixed Resistors-PRVB Series
20W
PRVB
±400PPM/℃
±5%、±10%
1Ω≤R≤20Ω
File size:365.93 KB
Details
PRVB
Radial Terminal Type Cement Fixed Resistors-PRVB Series
15W
PRVB
±350PPM/℃
±5%、±10%
20Ω＜R≤200KΩ
File size:365.93 KB
Details
PRVB
Radial Terminal Type Cement Fixed Resistors-PRVB Series
15W
PRVB
±400PPM/℃
±5%、±10%
1Ω≤R≤20Ω
File size:365.93 KB
Details
PRVB
Radial Terminal Type Cement Fixed Resistors-PRVB Series
10W
PRVB
±350PPM/℃
±5%、±10%
20Ω＜R≤200KΩ
File size:365.93 KB
Details
PRVB
Radial Terminal Type Cement Fixed Resistors-PRVB Series
10W
PRVB
±400PPM/℃
±5%、±10%
1Ω≤R≤20Ω
File size:365.93 KB
Details
PRVB
Radial Terminal Type Cement Fixed Resistors-PRVB Series
7W
PRVB
±350PPM/℃
±5%、±10%
20Ω＜R≤200KΩ
File size:365.93 KB
Details
PRVB
Radial Terminal Type Cement Fixed Resistors-PRVB Series
7W
PRVB
±400PPM/℃
±5%、±10%
0.1Ω≤R≤20Ω
File size:365.93 KB
Details
PRVB
Radial Terminal Type Cement Fixed Resistors-PRVB Series
5W
PRVB
±350PPM/℃
±5%、±10%
20Ω＜R≤200KΩ
File size:365.93 KB
Details
PRVB
Radial Terminal Type Cement Fixed Resistors-PRVB Series
5W
PRVB
±400PPM/℃
±5%、±10%
0.1Ω≤R≤20Ω
File size:365.93 KB
Details
PRVB
Radial Terminal Type Cement Fixed Resistors-PRVB Series
3W
PRVB
±350PPM/℃
±5%、±10%
20Ω＜R≤150KΩ
File size:365.93 KB
Details
PRVB
Radial Terminal Type Cement Fixed Resistors-PRVB Series
3W
PRVB
±400PPM/℃
±5%、±10%
0.1Ω≤R≤20Ω
File size:365.93 KB
Details
PRZA,PRZC
Radial Terminal Type Cement Fixed Resistors-PRZ Series
20W
PRZA,PRZC
±350PPM/℃
±5%、±10%
20Ω＜R≤200KΩ
File size:486 KB
Details
PRZA,PRZC
Radial Terminal Type Cement Fixed Resistors-PRZ Series
20W
PRZA,PRZC
±400PPM/℃
±5%、±10%
2Ω≤R≤20Ω
File size:486 KB
Details
PRZA,PRZC
Radial Terminal Type Cement Fixed Resistors-PRZ Series
15W
PRZA,PRZC
±350PPM/℃
±5%、±10%
20Ω＜R≤200KΩ
File size:486 KB
Details
PRZA,PRZC
Radial Terminal Type Cement Fixed Resistors-PRZ Series
15W
PRZA,PRZC
±400PPM/℃
±5%、±10%
1Ω≤R≤20Ω
File size:486 KB
Details
PRZA,PRZC,PRZD
Radial Terminal Type Cement Fixed Resistors-PRZ Series
10W
PRZA,PRZC,PRZD
±350PPM/℃
±5%、±10%
20Ω＜R≤200KΩ
File size:486 KB
Details
PRZA,PRZC,PRZD
Radial Terminal Type Cement Fixed Resistors-PRZ Series
10W
PRZA,PRZC,PRZD
±400PPM/℃
±5%、±10%
1Ω≤R≤20Ω
File size:486 KB
Details
PRZA,PRZC,PRZD
Radial Terminal Type Cement Fixed Resistors-PRZ Series
7W
PRZA,PRZC,PRZD
±350PPM/℃
±5%、±10%
20Ω＜R≤200KΩ
File size:486 KB
Details
PRZA,PRZC,PRZD
Radial Terminal Type Cement Fixed Resistors-PRZ Series
7W
PRZA,PRZC,PRZD
±400PPM/℃
±5%、±10%
0.1Ω≤R≤20Ω
File size:486 KB
Details
PRZA,PRZC,PRZD
Radial Terminal Type Cement Fixed Resistors-PRZ Series
5W
PRZA,PRZC,PRZD
±350PPM/℃
±5%、±10%
20Ω＜R≤200KΩ
File size:486 KB
Details
PRZA,PRZC,PRZD
Radial Terminal Type Cement Fixed Resistors-PRZ Series
5W
PRZA,PRZC,PRZD
±400PPM/℃
±5%、±10%
0.1Ω≤R≤20Ω
File size:486 KB
Details
PRZA,PRZC,PRZD
Radial Terminal Type Cement Fixed Resistors-PRZ Series
3W
PRZA,PRZC,PRZD
±350PPM/℃
±5%、±10%
20Ω＜R≤150KΩ
File size:486 KB
Details
PRZA,PRZC,PRZD
Radial Terminal Type Cement Fixed Resistors-PRZ Series
3W
PRZA,PRZC,PRZD
±400PPM/℃
±5%、±10%
0.1Ω≤R≤20Ω
File size:486 KB
Details
PRS
Terminal Type-With metal mounting bracket-PRS Series
25W
PRS
±350PPM/℃
±5%、±10%
20Ω＜R≤200KΩ
File size:462.1 KB
Details
PRS
Terminal Type-With metal mounting bracket-PRS Series
25W
PRS
±400PPM/℃
±5%、±10%
0.1Ω≤R≤20Ω
File size:462.1 KB
Details
PRS
Terminal Type-With metal mounting bracket-PRS Series
20W
PRS
±350PPM/℃
±5%、±10%
20Ω＜R≤200KΩ
File size:462.1 KB
Details
PRS
Terminal Type-With metal mounting bracket-PRS Series
20W
PRS
±400PPM/℃
±5%、±10%
0.1Ω≤R≤20Ω
File size:462.1 KB
Details
PRS
Terminal Type-With metal mounting bracket-PRS Series
15W
PRS
±350PPM/℃
±5%、±10%
20Ω＜R≤200KΩ
File size:462.1 KB
Details
PRS
Terminal Type-With metal mounting bracket-PRS Series
15W
PRS
±400PPM/℃
±5%、±10%
0.1Ω≤R≤20Ω
File size:462.1 KB
Details
PRS
Terminal Type-With metal mounting bracket-PRS Series
10W
PRS
±350PPM/℃
±5%、±10%
20Ω＜R≤200KΩ
File size:462.1 KB
Details
PRS
Terminal Type-With metal mounting bracket-PRS Series
10W
PRS
±400PPM/℃
±5%、±10%
0.1Ω≤R≤20Ω
File size:462.1 KB
Details
PRS
Terminal Type-With metal mounting bracket-PRS Series
7W
PRS
±350PPM/℃
±5%、±10%
20Ω＜R≤200KΩ
File size:462.1 KB
Details
PRS
Terminal Type-With metal mounting bracket-PRS Series
7W
PRS
±400PPM/℃
±5%、±10%
0.1Ω≤R≤20Ω
File size:462.1 KB
Details
PRS
Terminal Type-With metal mounting bracket-PRS Series
5W
PRS
±350PPM/℃
±5%、±10%
20Ω＜R≤150KΩ
File size:462.1 KB
Details
PRS
Terminal Type-With metal mounting bracket-PRS Series
5W
PRS
±400PPM/℃
±5%、±10%
0.1Ω≤R≤20Ω
File size:462.1 KB
Details
PRTC/PRTD
Terminal Type-With metal mounting bracket-PRTC、PRTD Series
50W
PRTC/PRTD
±350PPM/℃
±5%、±10%
20Ω≤R≤1.5KΩ
File size:622.28 KB
Details
PRTC/PRTD
Terminal Type-With metal mounting bracket-PRTC、PRTD Series
50W
PRTC/PRTD
±400PPM/℃
±5%、±10%
1Ω≤R＜20Ω
File size:622.28 KB
Details
PRTC/PRTD
Terminal Type-With metal mounting bracket-PRTC、PRTD Series
40W
PRTC/PRTD
±350PPM/℃
±5%、±10%
20Ω≤R≤1.5KΩ
File size:622.28 KB
Details
PRTC/PRTD
Terminal Type-With metal mounting bracket-PRTC、PRTD Series
40W
PRTC/PRTD
±400PPM/℃
±5%、±10%
1Ω≤R＜20Ω
File size:622.28 KB
Details
PRTC/PRTD
Terminal Type-With metal mounting bracket-PRTC、PRTD Series
30W
PRTC/PRTD
±350PPM/℃
±5%、±10%
20Ω≤R≤1.5KΩ
File size:622.28 KB
Details
PRTC/PRTD
Terminal Type-With metal mounting bracket-PRTC、PRTD Series
30W
PRTC/PRTD
±400PPM/℃
±5%、±10%
1Ω≤R＜20Ω
File size:622.28 KB
Details
PRTC/PRTD
Terminal Type-With metal mounting bracket-PRTC、PRTD Series
20W
PRTC/PRTD
±350PPM/℃
±5%、±10%
20Ω≤R≤200KΩ
File size:622.28 KB
Details
PRTC/PRTD
Terminal Type-With metal mounting bracket-PRTC、PRTD Series
20W
PRTC/PRTD
±400PPM/℃
±5%、±10%
1Ω≤R＜20Ω
File size:622.28 KB
Details
PRTC/PRTD
Terminal Type-With metal mounting bracket-PRTC、PRTD Series
15W
PRTC/PRTD
±350PPM/℃
±5%、±10%
20Ω≤R≤200KΩ
File size:622.28 KB
Details
PRTC/PRTD
Terminal Type-With metal mounting bracket-PRTC、PRTD Series
15W
PRTC/PRTD
±400PPM/℃
±5%、±10%
1Ω≤R＜20Ω
File size:622.28 KB
Details
PRTC/PRTD
Terminal Type-With metal mounting bracket-PRTC、PRTD Series
10W
PRTC/PRTD
±350PPM/℃
±5%、±10%
20Ω≤R≤200KΩ
File size:622.28 KB
Details
PRTC/PRTD
Terminal Type-With metal mounting bracket-PRTC、PRTD Series
10W
PRTC/PRTD
±400PPM/℃
±5%、±10%
0.1Ω≤R＜20Ω
File size:622.28 KB
Details
PRTM
Terminal Type-With metal mounting bracket-PRTM Series
20W
PRTM
±350PPM/℃
±5%、±10%
1.3KΩ≤R＜200KΩ
File size:364.69 KB
Details
PRTM
Terminal Type-With metal mounting bracket-PRTM Series
7W
PRTM
±350PPM/℃
±5%、±10%
1.3KΩ≤R＜200KΩ
File size:364.69 KB
Details
PRTM
Terminal Type-With metal mounting bracket-PRTM Series
4W
PRTM
±350PPM/℃
±5%、±10%
1.3KΩ≤R＜200KΩ
File size:364.69 KB
Details
VWT2
Vitreous Enamel Power Wire-wound Resistors
375W
VWT2
/
±1%、±5%
1.0Ω~10KΩ
File size:522.27 KB
Details
VWT2
Vitreous Enamel Power Wire-wound Resistors
300W
VWT2
/
±1%、±5%
1.0Ω~10KΩ
File size:522.27 KB
Details
VWT2
Vitreous Enamel Power Wire-wound Resistors
240W
VWT2
/
±1%、±5%
1.0Ω~5.0KΩ
File size:522.27 KB
Details
VWT2
Vitreous Enamel Power Wire-wound Resistors
135W
VWT2
/
±1%、±5%
0.1Ω~3.3KΩ
File size:522.27 KB
Details
VWT2
Vitreous Enamel Power Wire-wound Resistors
100W
VWT2
/
±1%、±5%
0.1Ω~3.3KΩ
File size:522.27 KB
Details
VWT2
Vitreous Enamel Power Wire-wound Resistors
90W
VWT2
/
±1%、±5%
0.1Ω~1.0KΩ
File size:522.27 KB
Details
VWN
Vitreous Enamel Power Wire-wound Resistors
30W
VWN
/
±1%、±5%
10Ω~3.3K Ω
File size:377.55 KB
Details
VWT1
Vitreous Enamel Power Wire-wound Resistors
375W
VWT1
/
±1%、±5%
1.0Ω~10KΩ
File size:416.07 KB
Details
VWT1
Vitreous Enamel Power Wire-wound Resistors
300W
VWT1
/
±1%、±5%
1.0Ω~10KΩ
File size:416.07 KB
Details
VWT1
Vitreous Enamel Power Wire-wound Resistors
240W
VWT1
/
±1%、±5%
1.0Ω~10KΩ
File size:416.07 KB
Details
VWT1
Vitreous Enamel Power Wire-wound Resistors
225W
VWT1
/
±1%、±5%
1.0Ω~10KΩ
File size:416.07 KB
Details
VWT1
Vitreous Enamel Power Wire-wound Resistors
220W
VWT1
/
±1%、±5%
1.0Ω~5.0KΩ
File size:416.07 KB
Details
VWT1
Vitreous Enamel Power Wire-wound Resistors
175W
VWT1
/
±1%、±5%
1.0Ω~5.0KΩ
File size:416.07 KB
Details
VWT1
Vitreous Enamel Power Wire-wound Resistors
150W
VWT1
/
±1%、±5%
0.1Ω~3.3KΩ
File size:416.07 KB
Details
VWT1
Vitreous Enamel Power Wire-wound Resistors
135W
VWT1
/
±1%、±5%
0.1Ω~3.3KΩ
File size:416.07 KB
Details
VWT1
Vitreous Enamel Power Wire-wound Resistors
100W
VWT1
/
±1%、±5%
0.1Ω~3.3KΩ
File size:416.07 KB
Details
VWT1
Vitreous Enamel Power Wire-wound Resistors
90W
VWT1
/
±1%、±5%
0.1Ω~1.0KΩ
File size:416.07 KB
Details
