Series
Product Name
Power
Specifications
Temperature coefficient
Precision
Resistance segment
Specifications
Details
PMR

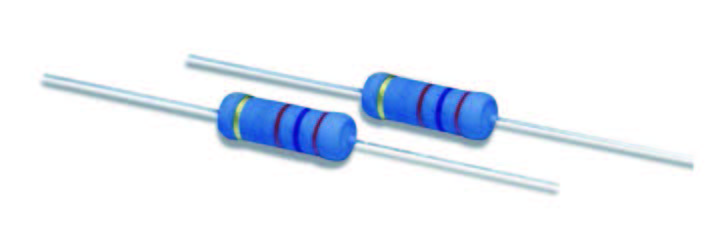

Power Metal Fixed Resistors
3W-S
PMR
±400
±2% ±5%
101KΩ≤R≤180KΩ
File size:525.48 KB
Details
PMR
Power Metal Fixed Resistors
3W-S
PMR
±350
±2% ±5%
12Ω≤R≤100KΩ
File size:525.48 KB
Details
PMR
Power Metal Fixed Resistors
2W-S
PMR
±400
±2% ±5%
101KΩ≤R≤680KΩ
File size:525.48 KB
Details
PMR
Power Metal Fixed Resistors
2W-S
PMR
±350
±2% ±5%
3.9Ω≤R≤100KΩ
File size:525.48 KB
Details
PMR
Power Metal Fixed Resistors
1W-S
PMR
±800
±2% ±5%
471KΩ≤R≤1MΩ
File size:525.48 KB
Details
PMR
Power Metal Fixed Resistors
1W-S
PMR
±400
±2% ±5%
101KΩ≤R≤470KΩ
File size:525.48 KB
Details
PMR
Power Metal Fixed Resistors
1W-S
PMR
±350
±2% ±5%
0.56Ω≤R≤100KΩ
File size:525.48 KB
Details
PS

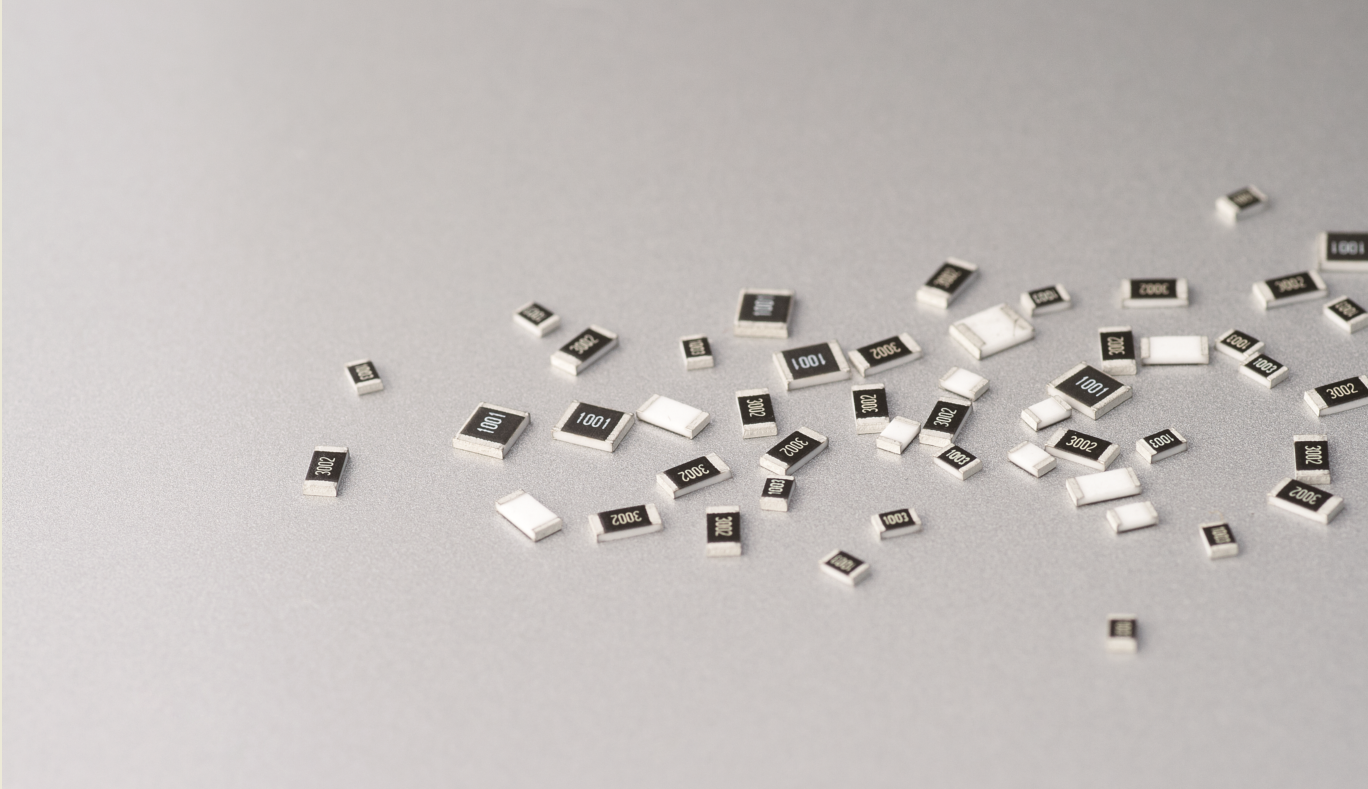

High-Precision Anti-Surge Thick Film Chip Resistors
2W
PS12
±100ppm/℃
±1% ±5%
0.1Ω≤R≤10MΩ
File size:856.71 KB
Details
PS
High-Precision Anti-Surge Thick Film Chip Resistors
1.25W
PS10
±100ppm/℃
±1% ±5%
1Ω≤R≤10MΩ
File size:856.71 KB
Details
PS
High-Precision Anti-Surge Thick Film Chip Resistors
3/4W
PS07
±100ppm/℃
±1% ±5%
0.1Ω≤R≤10MΩ
File size:856.71 KB
Details
PS
High-Precision Anti-Surge Thick Film Chip Resistors
1/2W
PS06
±100ppm/℃
±1% ±5%
0.1Ω≤R≤10MΩ
File size:856.71 KB
Details
PS
High-Precision Anti-Surge Thick Film Chip Resistors
1/3W
PS05
±100ppm/℃
±1% ±5%
1Ω≤R≤10MΩ
File size:856.71 KB
Details
PS
High-Precision Anti-Surge Thick Film Chip Resistors
1/4W
PS03
±100ppm/℃
±1% ±5%
1Ω≤R≤10MΩ
File size:856.71 KB
Details
PS
High-Precision Anti-Surge Thick Film Chip Resistors
1/8W
PS02
±100ppm/℃
±1% ±5%
＞100Ω
File size:856.71 KB
Details
PS
High-Precision Anti-Surge Thick Film Chip Resistors
1/8W
PS02
±200ppm/℃
±1% ±5%
10Ω＜R≤100Ω
File size:856.71 KB
Details
PS
High-Precision Anti-Surge Thick Film Chip Resistors
1/8W
PS02
±400ppm/℃
±1% ±5%
1Ω≤R≤10Ω
File size:856.71 KB
Details
MW
Metal Foil Wide Terminal Current Sensing Chip Resistors
3W
MW25
±50~±100
±0.5%~±1%
1mΩ~100mΩ
File size:772.72 KB
Details
MW
Metal Foil Wide Terminal Current Sensing Chip Resistors
2W
MW15
±50~±100
±0.5%~±2%
1mΩ~20mΩ
File size:772.72 KB
Details
MW
Metal Foil Wide Terminal Current Sensing Chip Resistors
1.5W
MW12
±50~±100
±0.5%~±2%
1mΩ~100mΩ
File size:772.72 KB
Details
MW
Metal Foil Wide Terminal Current Sensing Chip Resistors
1W
MW08
±50~±100
±0.5%~±2%
1mΩ~100mΩ
File size:772.72 KB
Details
LR
Metal Strip Chip Resistors
2W~3W
LR12
±50
±1%~±5%
3mΩ~350mΩ
File size:800.83 KB
Details
LR
Metal Strip Chip Resistors
1W、1.5W
LR06
±50
±1%~±5%
2mΩ~30mΩ
File size:800.83 KB
Details
HV
High-Voltage Thick Film Chip Resistors
1W
HV12
±100ppm/℃
±0.5%,±1%,±5%
47Ω≤R≤10MΩ
File size:803.35 KB
Details
HV
High-Voltage Thick Film Chip Resistors
3/4W
HV10
±100ppm/℃
±0.5%,±1%,±5%
47Ω≤R≤10MΩ
File size:803.35 KB
Details
HV
High-Voltage Thick Film Chip Resistors
1/2W
HV07
±100ppm/℃
±0.5%,±1%,±5%
47Ω≤R≤10MΩ
File size:803.35 KB
Details
HV
High-Voltage Thick Film Chip Resistors
1/4W
HV06
±100ppm/℃
±0.5%,±1%,±5%
47Ω≤R≤10MΩ
File size:803.35 KB
Details
HV
High-Voltage Thick Film Chip Resistors
1/8W
HV05
±100ppm/℃
±0.5%,±1%,±5%
47Ω≤R≤10MΩ
File size:803.35 KB
Details
HV
High-Voltage Thick Film Chip Resistors
1/10W
HV03
±100ppm/℃
±0.5%,±1%,±5%
47Ω≤R≤10MΩ
File size:803.35 KB
Details
TC
High-Precision Thin Film Chip Resistors
3/4W
TC12
±50ppm/℃
±0.5% 、±1%
1Ω≤R≤3MΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
3/4W
TC12
±50ppm/℃
±0.1% 、±0.25%
4.7Ω≤R≤3MΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
3/4W
TC12
±25ppm/℃
±0.5% 、±1%
1Ω≤R≤3MΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
3/4W
TC12
±25ppm/℃
±0.1% 、±0.25%
4.7Ω≤R≤3MΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
3/4W
TC12
±10ppm/℃
±0.1% 、±0.25%、±0.5% 、±1%
50Ω≤R≤200KΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
3/4W
TC12
±5ppm/℃
±0.1% 、±0.25%、±0.5% 、±1%
100Ω≤R≤25KΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/2W
TC10
±50ppm/℃
±0.5% 、±1%
1Ω≤R≤3MΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/2W
TC10
±50ppm/℃
±0.1% 、±0.25%
4.7Ω≤R≤3MΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/2W
TC10
±25ppm/℃
±0.5% 、±1%
1Ω≤R≤3MΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/2W
TC10
±25ppm/℃
±0.1% 、±0.25%
4.7Ω≤R≤3MΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/3W
TC10
±10ppm/℃
±0.1% 、±0.25%、±0.5% 、±1%
50Ω≤R≤200KΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/3W
TC10
±5ppm/℃
±0.1% 、±0.25%、±0.5% 、±1%
100Ω≤R≤25KΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/3W
TC07
±50ppm/℃
±0.5% 、±1%
2.49Ω≤R≤1.5MΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/3W
TC07
±50ppm/℃
±0.1% 、±0.25%
4.7Ω≤R≤1.5MΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/3W
TC07
±25ppm/℃
±0.5% 、±1%
2.49Ω≤R≤1.5MΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/3W
TC07
±25ppm/℃
±0.1% 、±0.25%
4.7Ω≤R≤1.5MΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/3W
TC07
±10ppm/℃
±0.1% 、±0.25%、±0.5% 、±1%
10Ω≤R≤1MΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/4W
TC06
±50ppm/℃
±0.5% 、±1%
1Ω≤R≤3MΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/4W
TC06
±50ppm/℃
±0.1% 、±0.25%
4.7Ω≤R≤3MΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/4W
TC06
±25ppm/℃
±0.5% 、±1%
1Ω≤R≤3MΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/4W
TC06
±25ppm/℃
±0.1% 、±0.25%
4.7Ω≤R≤3MΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/4W
TC06
±10ppm/℃
±0.1% 、±0.25%、±0.5% 、±1%
10Ω≤R≤200KΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/4W
TC06
±5ppm/℃
±0.1% 、±0.25%、±0.5% 、±1%
100Ω≤R≤15KΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/8W
TC05
±50ppm/℃
±0.5% 、±1%
1Ω≤R≤2MΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/8W
TC05
±50ppm/℃
±0.1% 、±0.25%
4.7Ω≤R≤2MΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/8W
TC05
±25ppm/℃
±0.5% 、±1%
1Ω≤R≤2MΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/8W
TC05
±25ppm/℃
±0.1% 、±0.25%
4.7Ω≤R≤2MΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/8W
TC05
±10ppm/℃
±0.1% 、±0.25%、±0.5% 、±1%
10Ω≤R≤100KΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/8W
TC05
±5ppm/℃
±0.1% 、±0.25%、±0.5% 、±1%
100Ω≤R≤15KΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/10W
TC03
±50ppm/℃
±0.5% 、±1%
1Ω≤R≤1MΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/10W
TC03
±50ppm/℃
±0.1% 、±0.25%
4.7Ω≤R≤1MΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/10W
TC03
±25ppm/℃
±0.5% 、±1%
1Ω≤R≤1MΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/10W
TC03
±25ppm/℃
±0.1% 、±0.25%
4.7Ω≤R≤1MΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/10W
TC03
±10ppm/℃
±0.1% 、±0.25%、±0.5% 、±1%
10Ω≤R≤50KΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/10W
TC03
±5ppm/℃
±0.1% 、±0.25%、±0.5% 、±1%
100Ω≤R≤4KΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/16W
TC02
±50ppm/℃
±0.1% 、±0.25%、±0.5% 、±1%
10Ω≤R≤332KΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/16W
TC02
±25ppm/℃
±0.1% 、±0.25%、±0.5% 、±1%
10Ω≤R≤332KΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/16W
TC02
±10ppm/℃
±0.1% 、±0.25%、±0.5% 、±1%
50Ω≤R≤12KΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/16W
TC02
±5ppm/℃
±0.1% 、±0.25%、±0.5% 、±1%
100Ω≤R≤2KΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/20W
TC01
±50ppm/℃
±0.1% 、±0.25%、±0.5% 、±1%
10Ω≤R≤82KΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/20W
TC01
±25ppm/℃
±0.1% 、±0.25%、±0.5% 、±1%
10Ω≤R≤82KΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/20W
TC01
±15ppm/℃
±0.1% 、±0.25%、±0.5% 、±1%
10Ω≤R≤5.1KΩ
File size:675.97 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/20W
TC01
±10ppm/℃
±0.1% 、±0.25%、±0.5% 、±1%
10Ω≤R≤5.1KΩ
File size:675.97 KB
Details
SP
Ultra High Power Thick Film Chip Resistors
6W
SP27
±100ppm/℃
±1% ±5%
10.1Ω≤R≤10MΩ
File size:557.81 KB
Details
SP
Ultra High Power Thick Film Chip Resistors
6W
SP27
±200ppm/℃
±1% ±5%
1Ω≤R≤10Ω
File size:557.81 KB
Details
SP
Ultra High Power Thick Film Chip Resistors
5W
SP20
±100ppm/℃
±1% ±5%
10.1Ω≤R≤10MΩ
File size:557.81 KB
Details
SP
Ultra High Power Thick Film Chip Resistors
5W
SP20
±200ppm/℃
±1% ±5%
1Ω≤R≤10Ω
File size:557.81 KB
Details
SP
Ultra High Power Thick Film Chip Resistors
4W
SP17
±100ppm/℃
±1% ±5%
10.1Ω≤R≤10MΩ
File size:557.81 KB
Details
SP
Ultra High Power Thick Film Chip Resistors
4W
SP17
±200ppm/℃
±1% ±5%
1Ω≤R≤10Ω
File size:557.81 KB
Details
SP
Ultra High Power Thick Film Chip Resistors
3W
SP12
±100ppm/℃
±1% ±5%
10.1Ω≤R≤10MΩ
File size:557.81 KB
Details
SP
Ultra High Power Thick Film Chip Resistors
3W
SP12
±200ppm/℃
±1% ±5%
1Ω≤R≤10Ω
File size:557.81 KB
Details
SP
Ultra High Power Thick Film Chip Resistors
2W
SP10
±100ppm/℃
±1% ±5%
10.1Ω≤R≤10MΩ
File size:557.81 KB
Details
SP
Ultra High Power Thick Film Chip Resistors
2W
SP10
±200ppm/℃
±1% ±5%
1Ω≤R≤10Ω
File size:557.81 KB
Details
MS
Metal Foil Chip Resistors
2W
MS12
±50
±1%
100mΩ＜R≤200mΩ
File size:749.86 KB
Details
MS
Metal Foil Chip Resistors
2W、3W
MS12
±50
±1%
10mΩ≤R≤100mΩ
File size:749.86 KB
Details
MS
Metal Foil Chip Resistors
2W、3W
MS12
±100
±1%
5mΩ~10mΩ
File size:749.86 KB
Details
MS
Metal Foil Chip Resistors
1.5W
MS10
±50
±1%
10mΩ，25mΩ，50mΩ，80mΩ，100mΩ，150mΩ
File size:749.86 KB
Details
MS
Metal Foil Chip Resistors
1W
MS06
±50~±100
±1%
5mΩ~25mΩ
File size:749.86 KB
Details
MS
Metal Foil Chip Resistors
3/4W
MS05
±50
±1%
10mΩ
File size:749.86 KB
Details
MS
Metal Foil Chip Resistors
1/2W
MS05
±50~±100
±1%
5mΩ~25mΩ
File size:749.86 KB
Details
MS
Metal Foil Chip Resistors
1/2W
MS03
±50~±75
±1%
5mΩ~30mΩ
File size:749.86 KB
Details
MS
Metal Foil Chip Resistors
1/4W
MS02
±100
±1%
26mΩ~50mΩ
File size:749.86 KB
Details
MS
Metal Foil Chip Resistors
1/3W
MS02
±100~±150
±1%
2.5mΩ~25mΩ
File size:749.86 KB
Details
MS
Metal Foil Chip Resistors
1/5W
MS01
±200
±1%
10mΩ,20mΩ
File size:749.86 KB
Details
High Power Wire-wound Flat Aluminum Shell Fixed Resistors-HPWR Series
File size:262.59 KB
Details
CKO/CGO
Ceramic Case
CKO/CGO
File size:340.62 KB
Details
TOC
铁帽
TOC
File size:307.08 KB
Details
CNC/CND
Chemical Nickel - Plating Film Capped Ceramic Rod
CNC/CND
±200ppm/℃
0.02Ω~1.3Ω
File size:316.17 KB
Details
MGC/MGD
Metal Glaze Capped Ceramic Rod
MGC/MGD
±100ppm/℃、±200ppm/℃
15Ω~1.3MΩ
File size:318.98 KB
Details
MOC/MOD
Metal Oxide Film Capped Ceramic Rod
MOC/MOD
±350ppm/℃
2Ω~500Ω
File size:317.83 KB
Details
MFC/MFD
Metal Film Capped Ceramic Rod
MFC/MFD
±15ppm/℃、±25ppm/℃、±50ppm/℃
0.5Ω~20KΩ
File size:328.9 KB
Details
CRC/CRD
Carbon Film Capped Ceramic Rod
CRC/CRD
0 ~ -1500ppm/℃
5.1K Ω~120KΩ
File size:344.78 KB
Details
